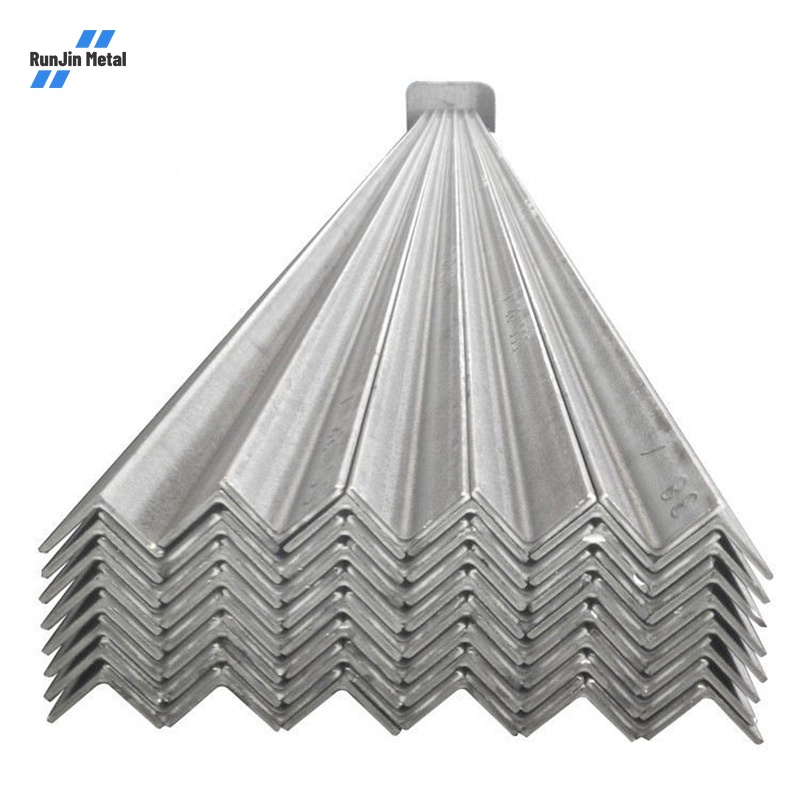

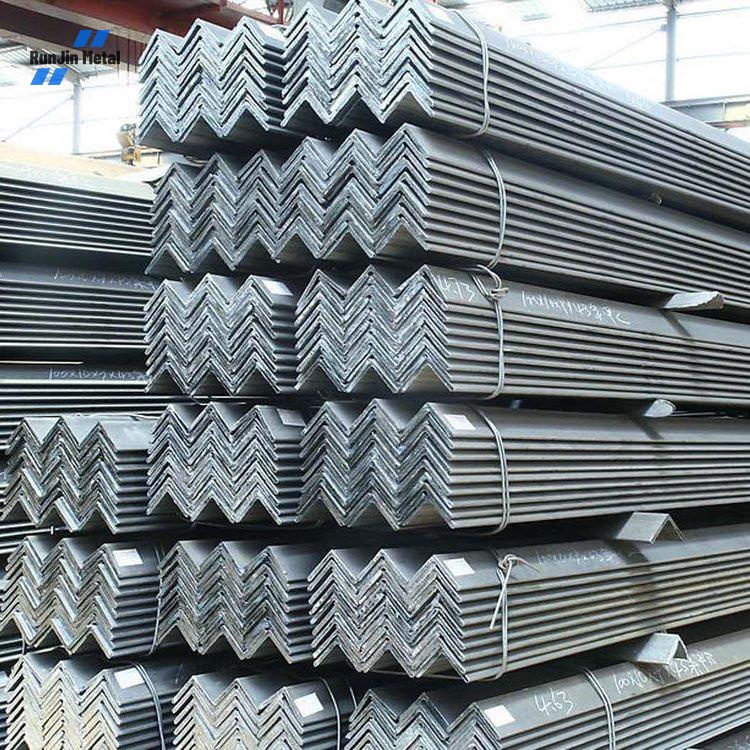

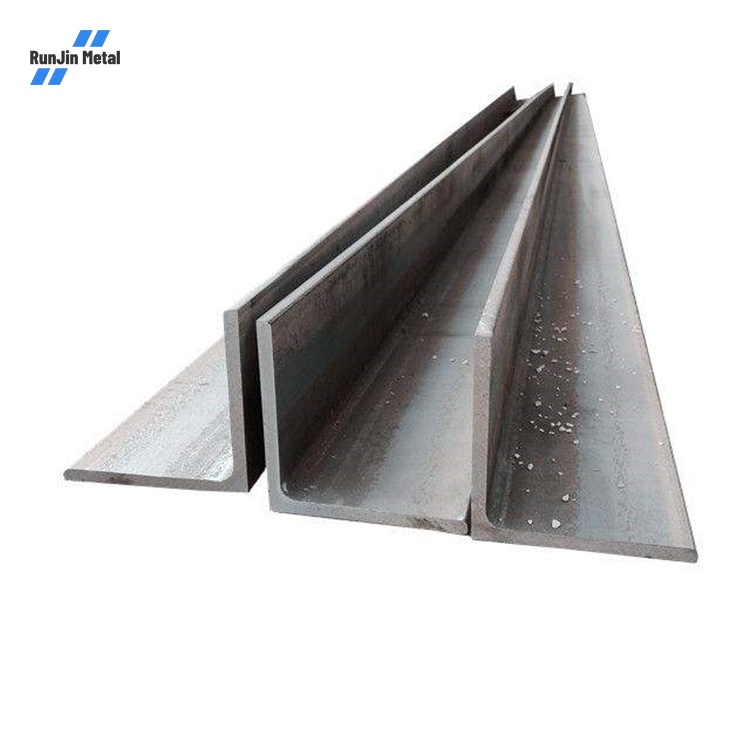

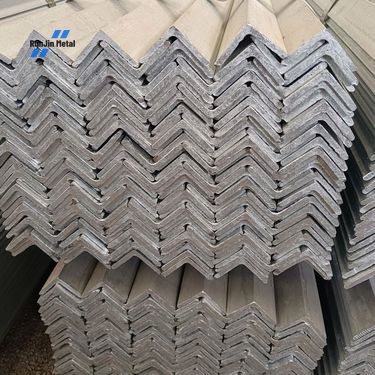

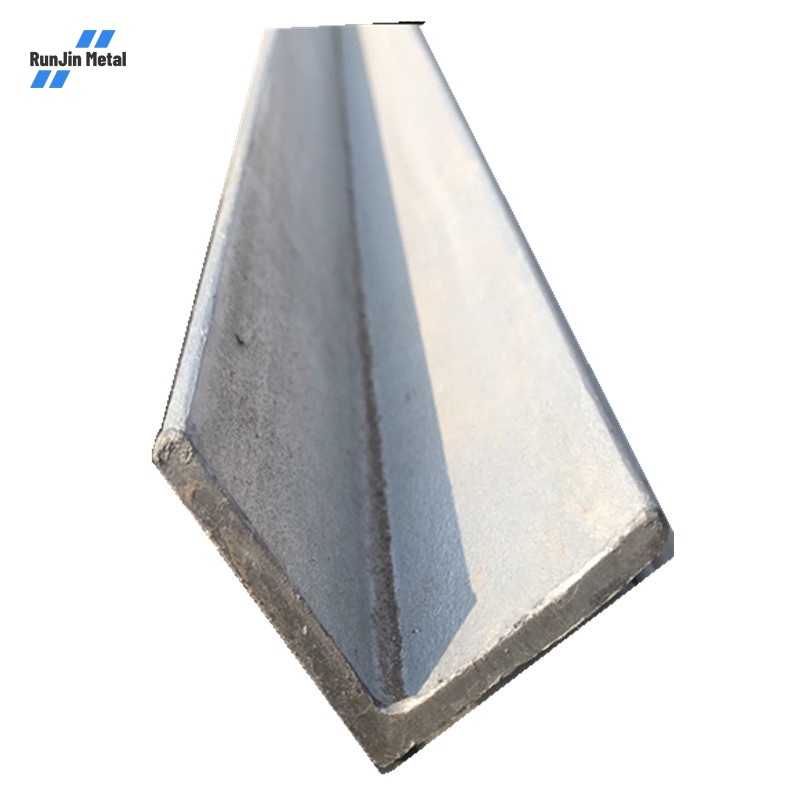

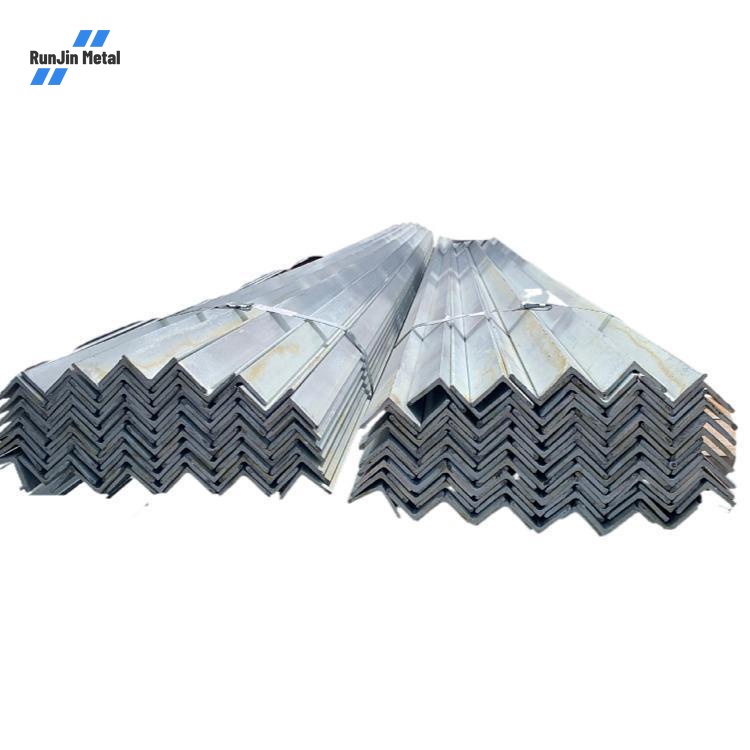

Galvanized Angle Steel
Galvanized angle steel is a type of steel whose surface has been treated with zinc for corrosion protection, primarily used to prevent rust and extend its service life. It retains the original L-shaped structure of angle steel, but with an additional layer of zinc for protection. Depending on the processing method, it is divided into hot-dip galvanized and cold-dip galvanized types, and is widely used in power, construction, and transportation facilities.
WhatsApp：+86 18888888888
Email：admin@admin.com
CONTACT US

Product Specifications

ItemSpecification Details
Product CategoryGalvanized Angle Steel
Surface TreatmentHot-dip Galvanized (HDG) / Electro-galvanized (EG)
Zinc Coating ThicknessHot-dip coating: 60-120μm (comply with ISO 1461, ASTM A123, GB/T 13912); Electro-galvanized coating: 5-15μm
Material GradeLow carbon steel, medium carbon steel, high-strength low-alloy steel
Domestic Steel GradeQ195, Q235B, Q355B(Q345B), 45#
Equivalent International GradeSS330, SAE1010, A36, S235JR, SS400, S355JR, A572Gr50, SAE1045, C45
Product TypeStandard hot-rolled equal angle steel, standard hot-rolled unequal angle steel, customized non-standard angle steel, lightweight angle steel
Standard LengthFixed standard length: 6m per piece; Custom length available from 3m to 12m
Equal Angle Steel Size RangeStandard size No.2#~20#; Dimension(Width×Width×Thickness): 20×20×3mm ~ 200×200×24mm; Regular stock sizes:2#,2.5#,3#,4#,5#,6.3#,7#,7.5#,8#,9#,10#,12#,14#,16#,18#,20#
Unequal Angle Steel Size RangeStandard size No.2.5/1.6#~20/12.5#; Dimension(Long Width×Short Width×Thickness): 25×16×3mm ~ 200×125×18mm; Regular stock sizes:3.2/2#,4/2.5#,4.5/2.8#,5/3.2#,5.6/3.6#,6.3/4#,7/4.5#,7.5/5#,8/5#,9/5.6#,10/6.3#,12/8#,14/9#,16/10#,18/11#,20/12.5#
Lightweight Angle Steel Range2Q#~10Q#, thinner thickness & lighter weight than standard angle steel; common stock:3Q#,4Q#,5Q#,6.3Q#,8Q#,10Q#
Non-standard Custom RangeWidth:20mm~250mm, Thickness:2mm~30mm, both equal & unequal angle steel can be rolled per requirement
Applicable StandardsGB/T 706, ASTM A36/A29, EN 10025, JIS G3101, ISO 1461, ASTM A123
Tolerance StandardComply with ISO 2768-mK, GB/T 1804-m
Export PackagingSea-worthy bundled packaging fixed with steel strips and wrapped by waterproof cloth; customized packaging available upon request
HS Code72162100 (general HS code for hot-dip galvanized angle steel)
ApplicationSteel structure workshop frame, equipment base support, curtain wall keel, construction embedded parts, municipal guardrail bracket, engineering machinery frame, bridge accessories, PV support, pipeline fixing bracket, mechanical equipment rack, shelf column, decoration engineering pendant, power tower component, communication tower bracket
Lead Time7-15 days for regular in-stock items; 15-30 days for customized sizes


Product Display

Factory Display

  • 碳钢卷精图5
  • 镀锌卷精图8
  • i-stainless-steel-3
  • Material
  • 1607379571616
  • 1645672035_3
  • GettyImages-138341623-57811b983df78c1e1ff63282-5c1a6ada46e0fb0001b3e1d5
  • 镀锌卷精图9
  • 镀锌卷精图5
  • Pre-Painted-Steel-Coils-PPGI
  • MINSTER_-_A_-_WEB-68
  • image-for-fy-21-results-page
  • Gallery-01-1
  • BURNING-DEPARTMENT-7-1024x745
  • About_Us-scaled
  • A36-steel (1)
  • 173958-in-plant-sm
  • 主图-08
  • 详情-11
  • 微信图片_20260313151127_492_143
  • 微信图片_20260313150407_348_143

FAQ

Q: Are you a trading company or a manufacturer?
A: We have our own factory

Q: How long is your delivery time?
A:  If goods are available, it is usually 5-10 days. Or if the goods are not in stock, within 30 days, calculate by quantity.

Q: What are the advantages of our products?
A: Good equipment and experience team, quality assurance, support customization, sufficient inventory and timely delivery.

Q:What is your packing method?
A:  Standard export packaging or as required
