Galvanized Steel H-Beam

Galvanized H-beams are corrosion-resistant structural steel materials made by hot-dip galvanizing ordinary H-beams (hot-rolled or welded) to form a zinc protective layer. They have an "H"-shaped cross-section and combine high strength, lightweight, and corrosion resistance.

WhatsApp：+86 18888888888

Email：admin@admin.com

Product Specifications

Item	Specification Details
Product Category	Galvanized Steel H Beam (Galvanized Universal Beam/Column)
Surface Treatment	Hot-dip Galvanized (HDG) / Electro-galvanized (EG)
Zinc Coating Thickness	Hot-dip coating: 60-120μm (comply with ISO 1461, ASTM A123, GB/T 13912); Electro-galvanized coating: 5-15μm
Material Grade	Low carbon steel, medium carbon steel, high-strength low-alloy steel
Domestic Steel Grade	Q195, Q235B, Q355B(Q345B), 45#
Equivalent International Grade	SS330, SAE1010, A36, S235JR, SS400, S355JR, A572Gr50, SAE1045, C45
Product Type	Standard hot-rolled H beam, welded H beam, customized non-standard H beam, lightweight thin-walled H beam
Standard Length	Fixed standard length: 6m/12m per piece; Custom length available from 3m to 18m
Standard Hot-rolled H Beam Size Range	Comply with GB/T 11263, covering 4 series:1. HW Wide Flange H Beam: 100×100mm ~ 400×400mm, regular stock:100×100,125×125,150×150,175×175,200×200,250×250,300×300,350×350,400×4002. HM Medium Flange H Beam: 150×100mm ~ 600×300mm, regular stock:150×100,200×150,250×175,300×200,350×250,400×300,450×300,500×300,600×3003. HN Narrow Flange H Beam: 100×50mm ~ 900×300mm, regular stock:100×50,125×60,150×75,175×90,200×100,250×125,300×150,350×175,400×200,450×200,500×200,600×200,700×300,800×300,900×3004. HT Thin-walled H Beam: 100×50mm ~ 500×200mm, regular stock:100×50,150×75,200×100,250×125,300×150,350×175,400×200,500×200
Welded H Beam Custom Range	Height:100mm~1500mm, Flange width:50mm~800mm, Web thickness:4mm~30mm, Flange thickness:6mm~60mm, any section size can be customized per requirement
Lightweight Thin-walled H Beam Range	Height:100mm~500mm, Thickness:2.5mm~8mm, lighter weight than standard H beam; common stock:100×50,120×60,140×70,160×80,180×90,200×100,250×125,300×150
Non-standard Custom Range	Asymmetric section, variable section, stiffened rib and other special specifications can be customized to meet special structural design requirements
Applicable Standards	GB/T 11263, GB/T 706, ASTM A36/A29, EN 10025, JIS G3101, ISO 1461, ASTM A123
Tolerance Standard	Comply with ISO 2768-mK, GB/T 1804-m
Export Packaging	Sea-worthy bundled packaging fixed with steel strips and wrapped by waterproof cloth; customized packaging available upon request
HS Code	72163311 (general HS code for hot-dip galvanized H beam)
Application	Steel structure workshop main frame, high-rise building steel structure, bridge main load-bearing structure, equipment base support, port machinery frame, lifting equipment rack, long-span roof truss of stadium/exhibition center, subway/high-speed rail station steel structure, PV support main structure, pipeline bridge, heavy equipment rack, mold frame, shelf column
Lead Time	7-15 days for regular in-stock items; 15-30 days for customized sizes

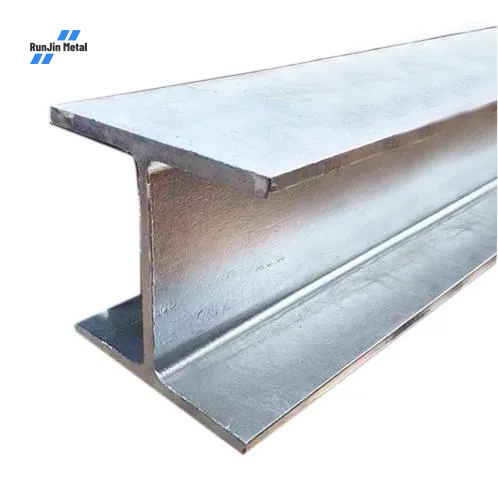

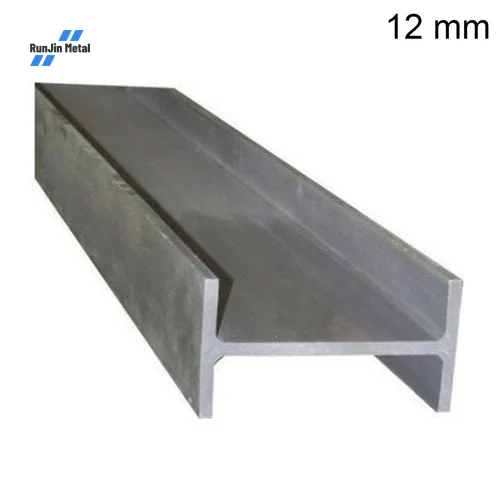

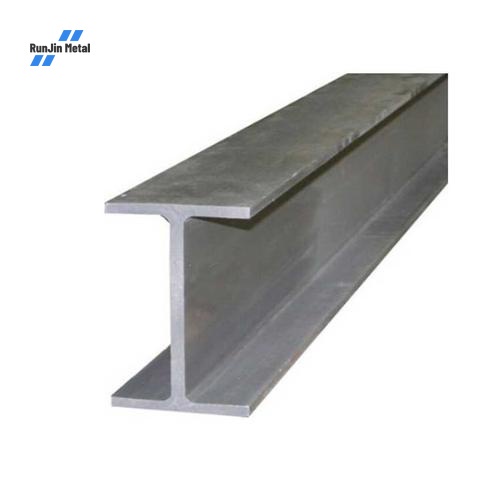

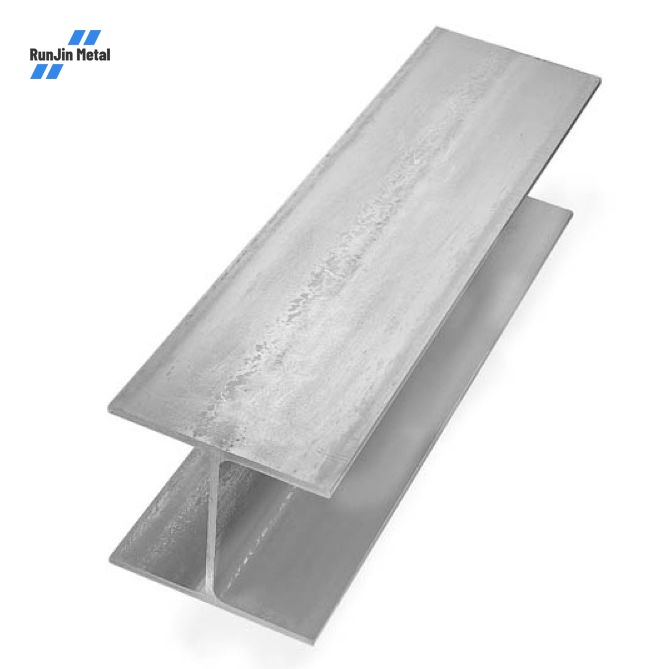

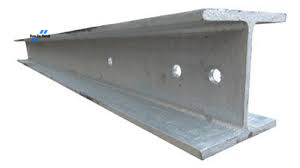

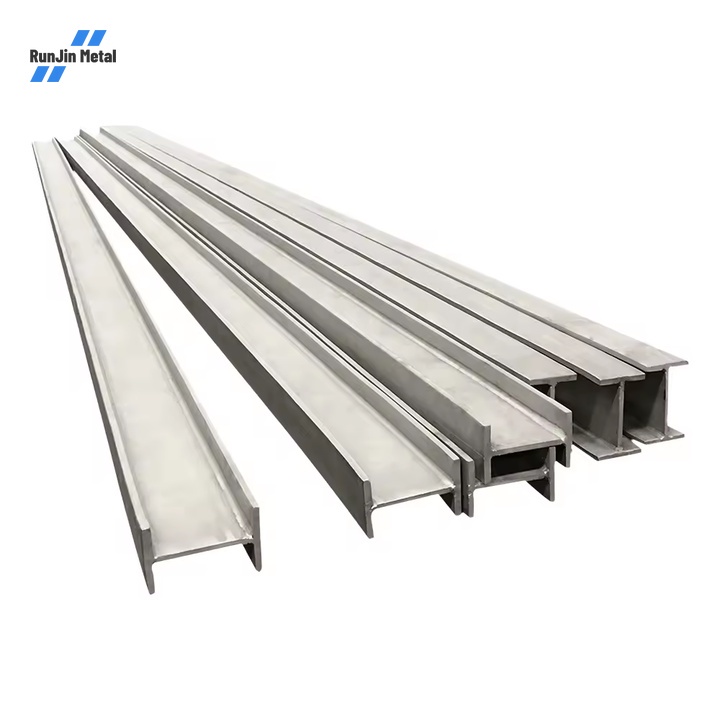

Product Display

Factory Display

FAQ

Q: Are you a trading company or a manufacturer?
A: We have our own factory

Q: How long is your delivery time?
A: If goods are available, it is usually 5-10 days. Or if the goods are not in stock, within 30 days, calculate by quantity.

Q: What are the advantages of our products?
A: Good equipment and experience team, quality assurance, support customization, sufficient inventory and timely delivery.

Q:What is your packing method?
A: Standard export packaging or as required
