Galvanized Steel I-Beam
Galvanized I-beams (also known as galvanized H-beams) are carbon structural steel sections (such as Q235B) with an "I"-shaped cross-section. They undergo a hot-dip galvanizing process to form a zinc alloy coating on the surface, making them a load-bearing structural material used to enhance corrosion resistance.
WhatsApp：+86 18888888888
Email：admin@admin.com
CONTACT US

Product Specifications

ItemSpecification Details
Product CategoryGalvanized Steel I Beam (Galvanized Universal Beam)
Surface TreatmentHot-dip Galvanized (HDG) / Electro-galvanized (EG)
Zinc Coating ThicknessHot-dip coating: 60-120μm (comply with ISO 1461, ASTM A123, GB/T 13912); Electro-galvanized coating: 5-15μm
Material GradeLow carbon steel, medium carbon steel, high-strength low-alloy steel
Domestic Steel GradeQ195, Q235B, Q355B(Q345B), 45#
Equivalent International GradeSS330, SAE1010, A36, S235JR, SS400, S355JR, A572Gr50, SAE1045, C45
Product TypeStandard hot-rolled I beam, customized non-standard I beam, lightweight I beam
Standard LengthFixed standard length: 6m per piece; Custom length available from 3m to 12m
Standard I Beam Size RangeStandard size No.10#~63#; Dimension(Height×Flange Width×Web Thickness): 100×68×4.5mm ~ 630×180×17mm; Regular stock sizes:10#,12#,14#,16#,18#,20#,22#,25#,28#,30#,32#,36#,40#,45#,50#,56#,63#
Lightweight I Beam Range10Q#~40Q#, thinner web & lighter weight than standard I beam; common stock:10Q#,12Q#,14Q#,16Q#,18Q#,20Q#,25Q#,30Q#,36Q#,40Q#
Non-standard Custom RangeHeight:100mm~700mm, Flange width:60mm~200mm, Web thickness:4mm~20mm, rolled per customer requirement
Applicable StandardsGB/T 706, ASTM A36/A29, EN 10025, JIS G3101, ISO 1461, ASTM A123
Tolerance StandardComply with ISO 2768-mK, GB/T 1804-m
Export PackagingSea-worthy bundled packaging fixed with steel strips and wrapped by waterproof cloth; customized packaging available upon request
HS Code72163200 (general HS code for hot-dip galvanized I beam)
ApplicationSteel structure workshop main beam, factory building frame, bridge main girder, equipment support frame, high-rise building steel structure, port machinery frame, vehicle chassis beam, railway wagon components, power plant steel structure, stadium roof truss, crane beam, conveyor support, pipeline bridge bracket
Lead Time7-15 days for regular in-stock items; 15-30 days for customized sizes

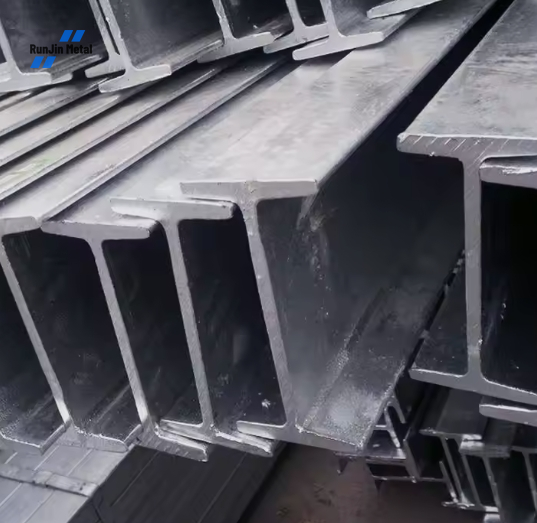

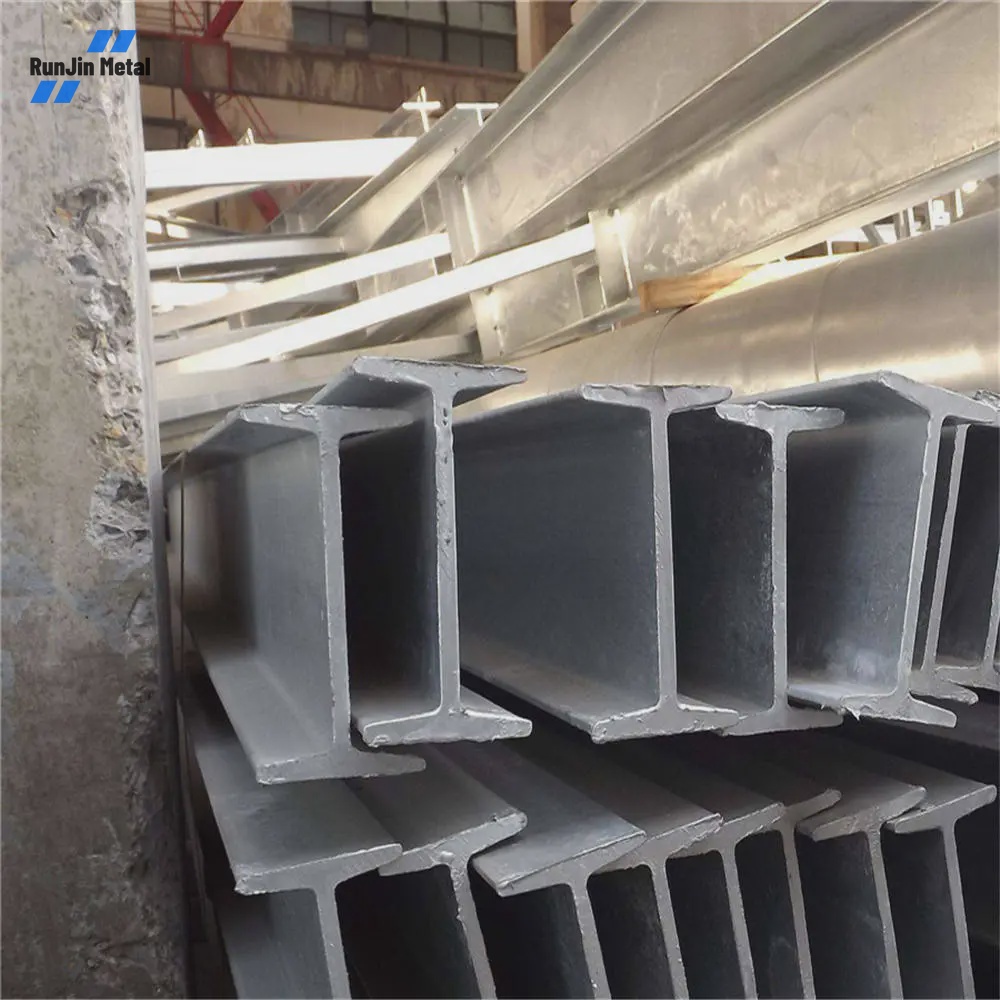

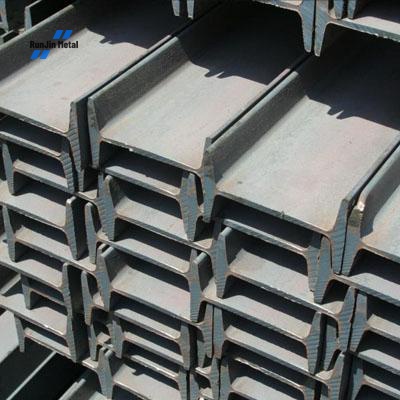

Product Display

Factory Display

  • 碳钢卷精图5
  • 镀锌卷精图8
  • i-stainless-steel-3
  • Material
  • 1607379571616
  • 1645672035_3
  • GettyImages-138341623-57811b983df78c1e1ff63282-5c1a6ada46e0fb0001b3e1d5
  • 镀锌卷精图9
  • 镀锌卷精图5
  • Pre-Painted-Steel-Coils-PPGI
  • MINSTER_-_A_-_WEB-68
  • image-for-fy-21-results-page
  • Gallery-01-1
  • BURNING-DEPARTMENT-7-1024x745
  • About_Us-scaled
  • A36-steel (1)
  • 173958-in-plant-sm
  • 主图-08
  • 详情-11
  • 微信图片_20260313151127_492_143
  • 微信图片_20260313150407_348_143

FAQ

Q: Are you a trading company or a manufacturer?
A: We have our own factory

Q: How long is your delivery time?
A:  If goods are available, it is usually 5-10 days. Or if the goods are not in stock, within 30 days, calculate by quantity.

Q: What are the advantages of our products?
A: Good equipment and experience team, quality assurance, support customization, sufficient inventory and timely delivery.

Q:What is your packing method?
A:  Standard export packaging or as required
