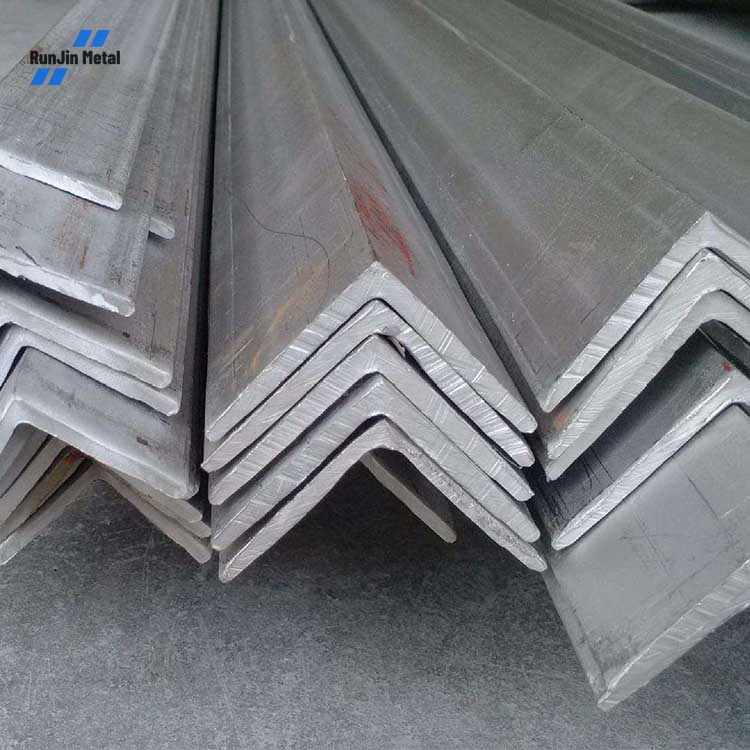

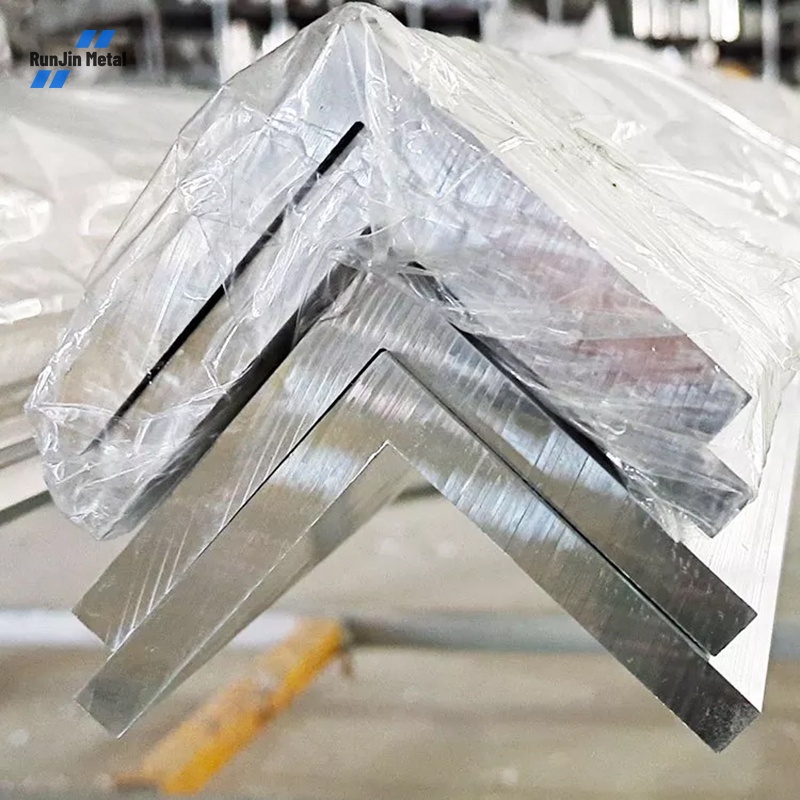

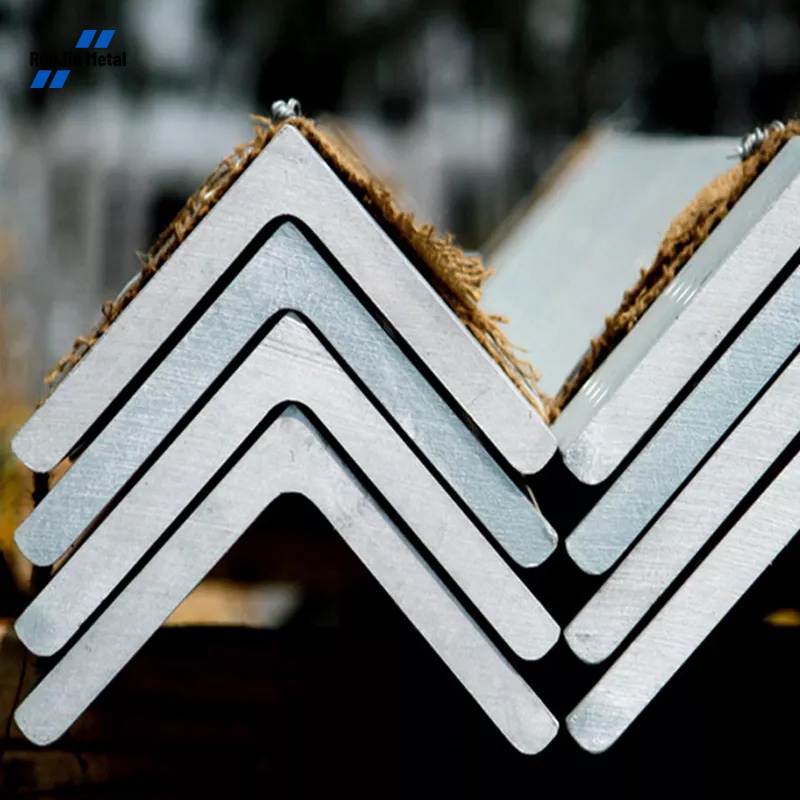

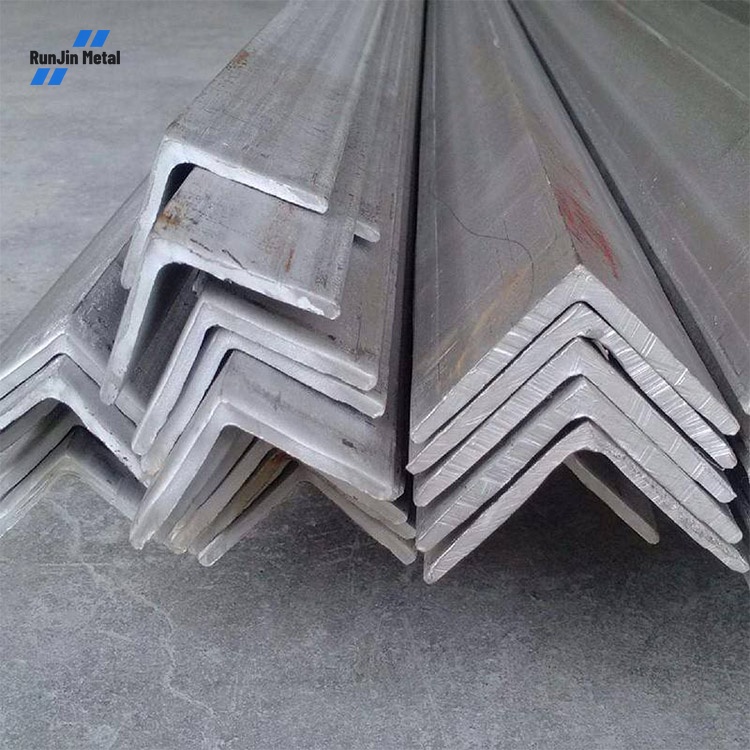

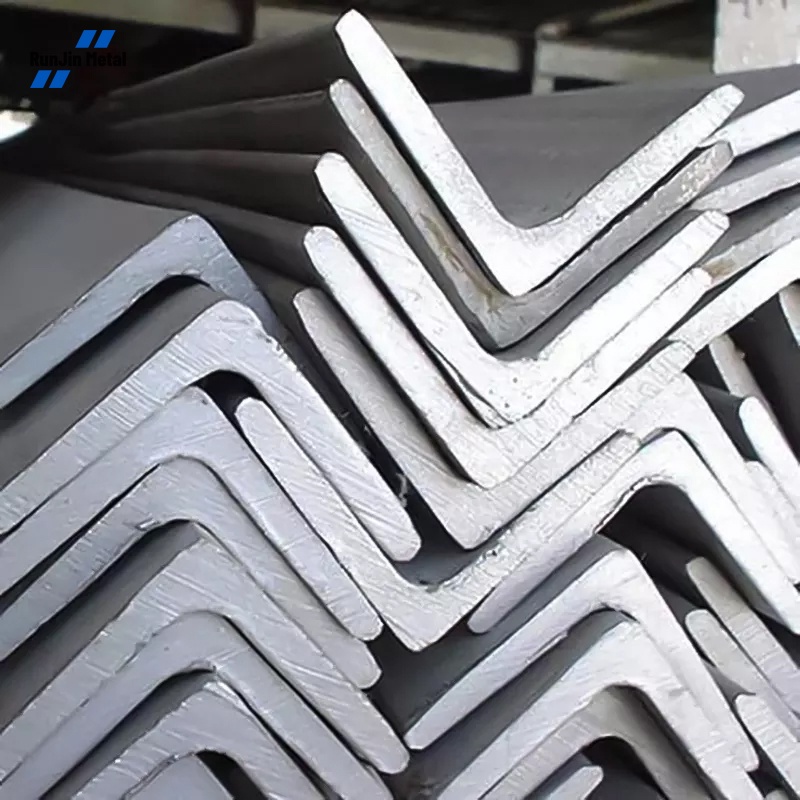

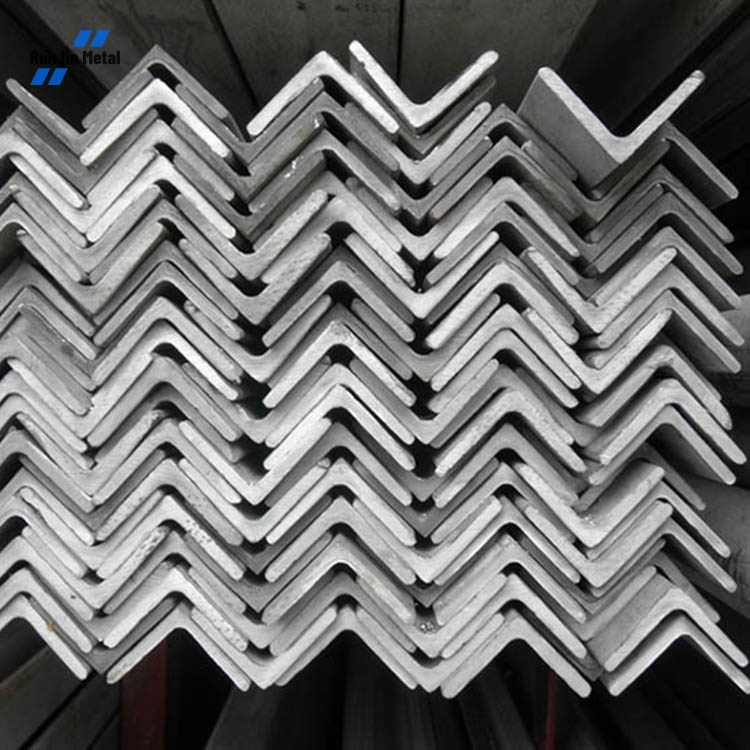

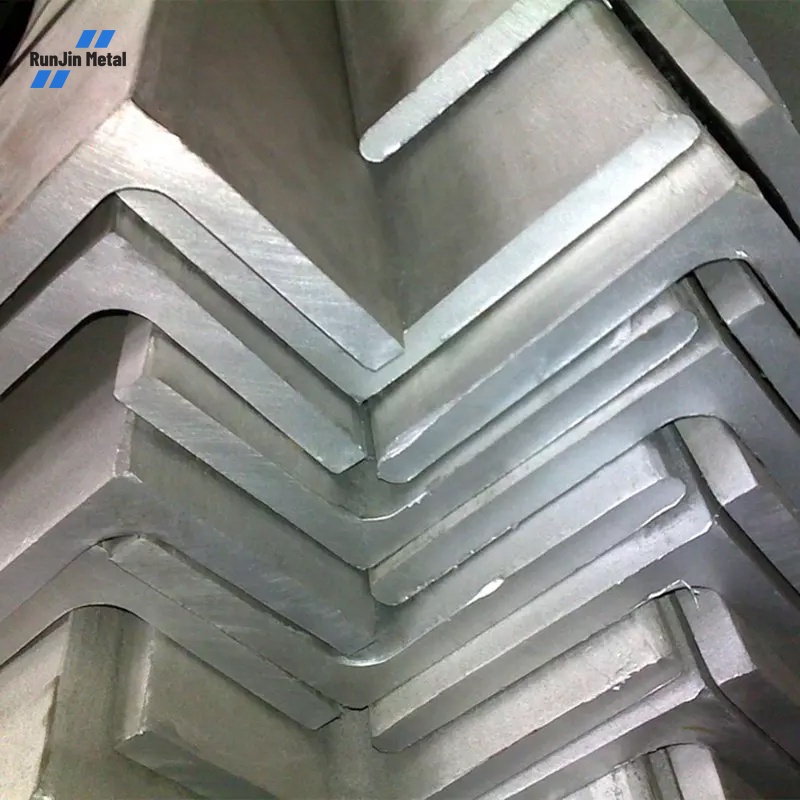

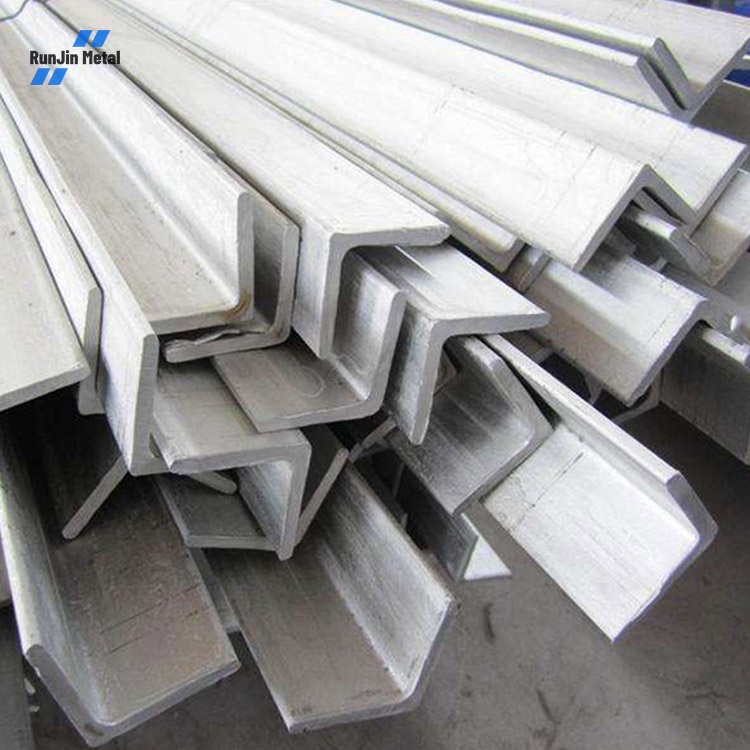

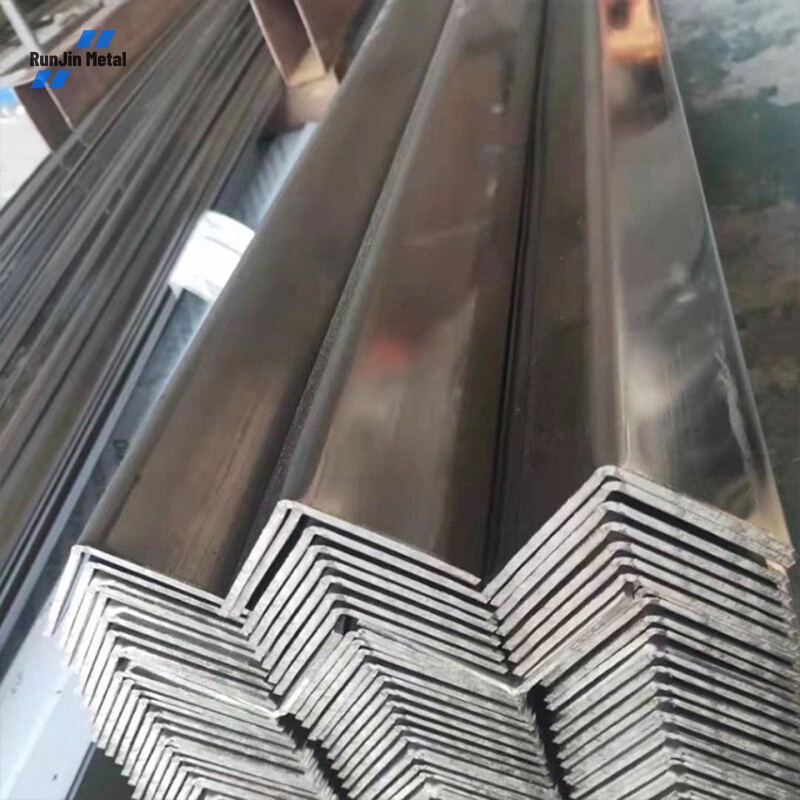

| Product Category | Stainless Steel Angle |
| Surface Treatment | Pickling & passivation, wire drawing, mirror polishing, sand blasting, mechanical polishing; Optional anti-corrosion coating: fluorocarbon spraying, epoxy resin coating, hot-dip galvanized (for special requirements) available upon client’s demand |
| Material Grade | Austenitic stainless steel, ferritic stainless steel, duplex stainless steel, martensitic stainless steel |
| Domestic Steel Grade | 304, 304L, 316, 316L, 321, 310S, 201, 202, 430, 2205 |
| Equivalent International Grade | AISI 304/304L/316/316L/321/310S/430, EN 1.4301/1.4306/1.4401/1.4404/1.4541/1.4845/1.4016, JIS SUS304/SUS304L/SUS316/SUS316L/SUS321/SUS310S/SUS430, ASTM A240/A480 |
| Product Type | Standard hot-rolled Stainless Steel Angle, cold-formed stainless Stainless Steel Angle, |
| Standard Length | Fixed standard length: 6m/9m/12m per piece; Custom length available from 3m to 18m |
| Standard Size Range | Standard size No.5#~40#; Dimension(Height H×Flange Width B×Web Thickness d): 50×37×4.5mm ~ 400×104×14.5mm; Regular stock sizes:5#,6.3#,8#,10#,12#,14#,16#,18#,20#,22#,25#,28#,30#,32#,36#,40# |
| Lightweight Thin-walled U Channel Range | No.5#~30#, thickness 2.0mm~6.0mm, lighter weight than standard U channel; common stock:5#,6.3#,8#,10#,12#,14#,16#,20#,25#,30# |
| Non-standard Custom Range | Height H:25mm~450mm, Flange width B:20mm~120mm, Web thickness d:2.0mm~20.0mm; Special-shaped section, variable section, punching, stiffened rib and other special specifications can be customized to meet personalized design requirements |
| Applicable Standards | GB/T 706, GB/T 6728, ASTM A240/A480, EN 10088, JIS G4305, ISO 9445 |
| Tolerance Standard | Comply with ISO 2768-mK, GB/T 1804-m |
| Export Packaging | Sea-worthy bundled packaging fixed with steel strips and wrapped by waterproof cloth; customized packaging available upon request, wooden pallet/iron frame packing optional |
| Application | Steel structure workshop frame, curtain wall keel, equipment base support, PV support, food & pharmaceutical clean equipment, chemical anti-corrosion equipment, decoration engineering pendant, shelf column, auto parts, ship accessories, rail transit equipment, environmental protection equipment, mechanical equipment rack, cold storage support, clean room steel structure, water treatment equipment frame |
| Lead Time | 7-15 days for regular in-stock items; 15-30 days for customized sizes |
